• Industry standard interface - Compliant with USB 3.0 SuperSpeed specification
• AIA standard compatibility - USB3 Vision standard (1)

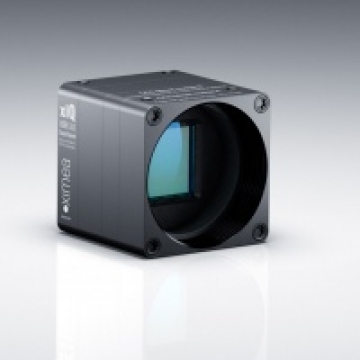

• Ultra compact micro camera- only 26.4 x 26.4 x 21.2 mm, 27grams (2)
• Economical - excellent value and price, low TCO and fast ROI
• Cool - low power consumption, 1.0 to 1.8 W power consumption
• Powerful - 5Gb/s interface 400Mpix/s data troughtput
• Fast - high speed, high frame rate: 600fps at VGA and 90fps at 4Mpix resolutions
• Connectivity - Programmable opto-isolated input and output, 3 status LEDs
• Compatibility - support for Windows and Linux, various Image Processing Libraries
• Software interfaces - GenICam / GenTL and highly optimized xiAPI SDK
• Easy deployment - range of accessories and widest software support

       (1) Standard introduction is planned for VISION 2012 in Stuttgart
       (2)CS mount version, without lens and moiunting bracket

xiQ Monochrome and Color Sensors models:

Availability	B/W model	Color model	Sensor	Resolution	Pixel µm	ADC bits	Frames per sec(1)	DR dB	Optical size	Diagonal mm	Power W
Soon	MQ003MG-CM	MQ003CG-CM	CMV300	648 x 488	7.4	12/10	600	66	1/3"	6.0	1.8
Now	MQ013MG-E2	MQ013CG-E2	EV76C560	1280 x 1024	5.3	10	60	66	1/1.8"	8.7	1.0
Soon	MQ013MG-ON	MQ013CG-ON	VITA1300	1280 x 1024	4.8	10	150	60	1/2"	7.9	1.5
Soon	MQ022MG-CM	MQ022CG-CM	CMV2000	2048 x 1088	5.5	12/20	180	60	2/3"	12.8	1.8
Now	MQ042MG-CM	MQ042CG-CM	CMV4000	2048 x 2048	5.5	12/10	90	60	1"	15.9	1.8

(*) All models are also available in board level version
(**) Infrared Extended models are available on request,  Contact sales
(1) Maximum frame rates measured at 8 bits per pixel in free run mode.

Common features:

Sensor Technology	CMOS, Global shutter
Acquisition Modes	Continuous, software trigger, hardware trigger
Partial Image Readout	ROI, Skipping and Binning modes supported (check hardware manual for details)
Image data formats	8, 10 or 12 bit RAW pixel data
Data con version	programmable hardware LUT 12->8 (*)
Color image processing	Host based de-Bayering, sharpening, Gamma, color matrix, true color CMS
Hot/blemish pixels correction	On camera storage of up to 5000 pixel coordinates, host assisted correction
Auto adjustments	Auto white balance, auto gain, auto exposure
Flat field corrections	Host assisted pixel level shading and lens corrections
Image Data and Control Interface	USB 3.0 standard Micro B with screw lock threads compliant to USB3 Vision standard
General Purpose I/O	1x opto-isolated input, 1x opto-isolated output, power LED, 2x LED software programmable
Signal conditioning	Programmable debouncing time
Synchronization	Hardware trigger input, software trigger, exposure strobe output, busy output
Housing and lens mount	Standard C mount. Available options are CS mount, S(M12) mount and board level
Power requirements	1 to 1.8W, supplied via USB 3.0 interface
Dimensions	26.4 x 26.4 x 26.5 mm (C-mount version)
Weight	27 grams (C-mount version)
Environment	Operating 0°C to 50°C on housing, RH 80% non-condensing, -30°C to 60°C storage
Conformity	CE, FCC, RoHS, GenICam/GenTL, USB 3.0 SuperSpeed
Opertating systems	Windows 7 SP1 (x86 and x64), Linux Ubuntu
Minimumm host hardware	Intel i3 3.0GHz, 2GB RAM, NVIDIA or Radeon 128MB, Motherboard with PCIe x1 Gen 2 slot,    compatible USB 3.0 host adapter
Software support	xiAPI SDK, adapters and drivers for various image processing packages
Firmware updates	Field firmware update

(*) in development
