Applications: In-situ optical inspection camera, fast process capturing, e.g. golf club swings, Intelligent Transportation Systems (ITS), Open road tolling and Traffic monitoring, Industrial Automation, Machine Vision facial Recognition, Motion Capture, Automotive crash testing, OCR/ OCV, 3D scanning, Robotic Arms, Material and Life science Microscopy, Ophthalmology and Retinal imaging, Medical Imaging, Flat panel inspection, Dental, Kiosks, Security, Biometrics

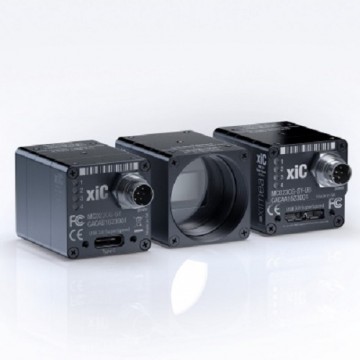

3.1 MP Monochrome CMOS Camera with USB 3.1 Gen 1 Interface

NOTE: Please check MOQ and conditions for the version with Sony IMX265

Specifications:
Resolution	2064 x 1544
Sensor type	CMOS Matrix B/W
Sensor model	Sony IMX252
Sensor size	1/1.8"
Pixel size	3.45 µm
Bits per pixel	8, 10, 12
Dynamic range	70.9 dB
Signal to noise ratio	40.3 dB
Frame rates	122 fps
Image data interface	USB 3.1 Gen 1
Data I/O	GPIO IN, OUT
Power requirements	2.75 Watt
Lens mount	C or CS Mount
Weight	38 grams
Dimensions WxHxD	26 x 26 x 33 mm
Operating environment	50 °C
Customs tariff code	8525.80 30 (EU) / 8525.80 40 (USA)
ECCN	EAR99
